General Information about DDS
The Visu-IT! D
) is an intuitive database application for defining and managing calibration and measurement items to be used in embedded controllers.
DDS manages the calibration and measurement object attributes required
for configuring calibration systems, as well as code representation
information. To ensure consistency of the DDS data pool and the actual
ECU software, ANSI-C code is generated out of the DDS data definitions.
This ANSI-C code is compiled and linked with the ECU software. The
generated locator file is used by DDS to:
Perform validity checks
Capture the address information required for creating an ASAM MCD 2MC file
ANSI-C source code export of the data definitions in the database
Locator address import (IEEE-695 file or ELF/DWARF file)
Creation of description files for calibration tools reading ASAM MCD 2MC files
Several other import and export filters
Remote Access via COM API
Arrays and structured data are mapped to the calibration
data object model (curve/map, axis, parameter, online data).
The modular DDS database itself consists of so-called configuration
units in the form of (ASCII format) GRL files, which can be managed,
together with the ECU source code, by the use of a configuration
The DDS Scripting Host provides basic search and modification operations
on the command-line.
The DDS COM-API provides access to the internal data structures of the
DDS runs on Windows 7, 8, and 10 and
supports command line controlled filters. File imports or exports can be
invoked either from the DDS Editor graphical user interface or via a
command line, allowing the DDS functionality to be integrated with
script, batch and make processes. Severity level control mechanisms
support the fine-tuning of error management policies to specific
A comprehensive online help system provides context-sensitive user
information and step-by-step guidance for all input fields, system
messages and command line tool options.

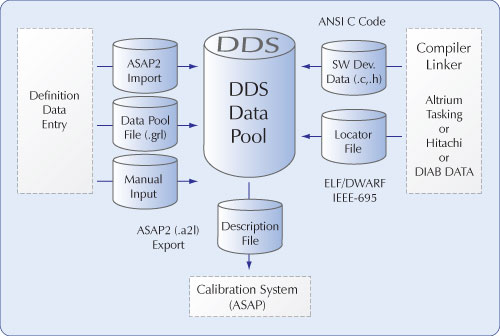

The user enters calibration data by defining those
manually via the DDS Editor, by importing ASAP2 (ASAM MCD 2 MC) files,
by running customer specific import scripts using the DDS COM API or by re-using
existing data pool files.
The Source Export filter is used to generate ANSI C declaration and
definition files. Together with the ECU algorithms, these *.c and *.h
files will be used for ECU software development.
The DDS generated C source files as well as the ECU algorithm
software are compiled by one of the sup-ported compilers (see list below).
The locator file generated by this step provides the address information
for the calibration data definitions.
DDS provides a filter for importing the locator file into the
database. The address information will be merged with the existing
An ASAP2 (ASAM MCD 2 MC) description file (*.a2l) is generated. Alternatively, a
description file (*.des) for the SAM calibration system can be generated.
Calibration data provided as CVX files can be imported to define
ASAM-MCD-2MC export: versions 1.6, 1.5.1, 1.4.1, 1.3.1, 1.2.1
ASAM-MCD-2MC import: versions 1.7, 1.6, 1.5.1, 1.4.1, 1.3.1, 1.2.1
ASAM-MCD-2D export: version 1.2.2 (prototype)
ASAM-MCD-2D export: version 2.0 (ODX) -> ODX-FLASH export (prototype)
ASAM-AE-MDX export: version 1.2 (MDX)
IEEE-695 import: Tasking C166, etc.
Calibration Value import: CVX version 1.0, 2.1
Operating System: Windows 7, 8, 10
